Convex Hull In Triangle Test

发表于 更新于 分类于
1
! pip install matplotlib
1
2
import matplotlib.pyplot as plt
import random
1
2
3
4
5
x_list = [random.uniform(-10, 10) for i in range(-10, 10)]
y_list = [random.uniform(-10, 10) for i in range(-10, 10)]

for x, y in zip(x_list, y_list):
    print("x: ", x, ", y: ", y)
x:  4.039168902596996 , y:  -3.3201577215726052
x:  8.459999626479327 , y:  -0.13736825068833447
x:  -8.342991923279612 , y:  -7.1629815679156295
x:  -0.36787835718506656 , y:  -2.448133980966465
x:  -0.4687168346934456 , y:  3.040681358244493
x:  -0.28685616430452576 , y:  1.6545115981901226
x:  9.837035515217035 , y:  3.2942306587502763
x:  4.5016481434863 , y:  -2.0413345594040377
x:  1.9318082484926524 , y:  0.18651139391879568
x:  4.350205767699428 , y:  8.216285604804607
x:  -9.999493760191719 , y:  4.303036544064035
x:  -1.7286270125282286 , y:  -1.7820149178647036
x:  -8.591753322699772 , y:  0.23047966128983788
x:  5.895396308797414 , y:  -7.628641617043197
x:  7.509420190645113 , y:  1.003304733473744
x:  -6.978923639231656 , y:  -2.5683449048039293
x:  -7.722623283046808 , y:  8.043854497193191
x:  -5.831863423334667 , y:  4.200704989700856
x:  5.439294098013551 , y:  -1.479249543919769
x:  7.151000669383279 , y:  8.93879798676696

1
2
3

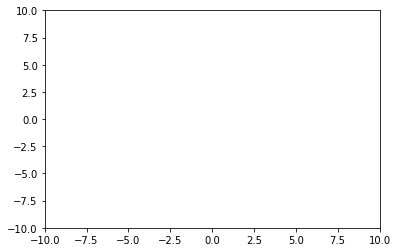

plt.xlim(-10, 10)
plt.ylim(-10, 10)
plt.figure(figsize=(600, 800))
<Figure size 43200x57600 with 0 Axes>

png

<Figure size 43200x57600 with 0 Axes>

1
2

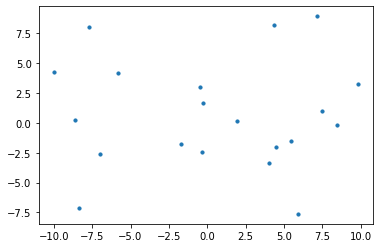

plt.scatter(x_list, y_list, s=10, marker="o")
plt.show()

png

寻找极点（穷举）

  1. 选择任意三个不共线的顶点，构成三角形
  2. 对所有顶点执行三角形构造
  3. 判断每一个顶点（除当前判断三角形外）是否在三角形内，如果在三角形内则排除其是极点，如果顶点不被任何一个三角形包围则证明是极点
1
2
3
4
5
6
7
8
# 左侧顶点测试, 测试直线point1-->point2
def to_left_test(point1, point2, point3)-> bool:
    # 叉积刚好是由两个向量所在的平行四边形面积的两倍
    value = point1[0] * (point2[1] - point3[1]) + point2[0] * (point3[1] - point1[1]) + point3[0] * (point1[1] - point2[1])
    if value > 0:
        return True
    else:
        return False

测试三个顶点是否共线

要判断三个点是否共线，可以通过计算由这三个点形成的向量所构成的行列式的值来实现。如果这三个点共线，那么它们形成的任意两个向量的外积（即叉乘）会是零向量，这等价于这两个向量组成的平行四边形面积为0。对于二维平面上的点来说，这可以通过计算一个特定的2x2矩阵的行列式来完成，或者直接使用一个3x3行列式的方法。

使用行列式判断三点共线

给定三个点 $ P_1(x_1, y_1) $，$ P_2(x_2, y_2) $，和 $ P_3(x_3, y_3) $，这三个点共线的条件是：

这个行列式可以直接展开计算，其结果为：

如果该表达式的值为 0，则说明这三个点 共线。

1
2
3
4
5
6
7
8
9
10
11
def colinear_test(point1, point2, point3) ->bool:
    value = point1[0] * (point2[1] - point3[1]) + point2[0] * (point3[1] - point1[1]) + point3[0] * (point1[1] - point2[1])
    if value == 0:
        return True
    else:
        return False

if False == colinear_test([1, 0], [0, 1], [1, 1]):
    print("succeed")
else:
    print("error")
succeed

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
import itertools

triangles = []
point_set = []
generate_triangle_points_x = []
generate_triangle_points_y = []

for index, point in enumerate(zip(x_list, y_list)):
    if index % 3 == 0:
        generate_triangle_points_x.append(point[0])
        generate_triangle_points_y.append(point[1])
    else:
        point_set.append(point)

    index += 1

points = zip(generate_triangle_points_x, generate_triangle_points_y)
for index, triangle in enumerate(itertools.combinations(points, 3)):
    triangles.append(triangle)

print("point's size: ", len(x_list))
print("triangle point's size: ", len(generate_triangle_points_x))
print("point_set point's size: ", len(point_set))

point's size:  20
triangle point's size:  7
point_set point's size:  13

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

def draw_triangles_and_points(points, triangles, title):
    plt.figure(figsize=(10, 10))
    plt.title(title)
    # 绘制散点图
    for point in points:
        plt.scatter(*point)

    # 绘制三角形
    for triangle in triangles:
        point1 = triangle[0]
        point2 = triangle[1]
        point3 = triangle[2]

        plt.plot([point1[0], point2[0]], [point1[1], point2[1]], color="blue", linewidth=1)
        plt.plot([point1[0], point3[0]], [point1[1], point3[1]], color="blue", linewidth=1)
        plt.plot([point2[0], point3[0]], [point2[1], point3[1]], color="blue", linewidth=1)

    plt.show()
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
# triangle test Functions

def test_point_in_triangle(point: list, triangle: list) -> bool:
    point_1 = triangle[0]
    point_2 = triangle[1]
    point_3 = triangle[2]

    test_result1 = to_left_test(point_1, point_2, point)
    test_result2 = to_left_test(point_2, point_3, point)
    test_result3 = to_left_test(point_3, point_1, point)

    if test_result1 == test_result2 and \
       test_result2 == test_result3:
        return True
    else:
        return False

def test_point_in_triangles(point: list, triangles) -> bool:
    for triangle in triangles:
        if test_point_in_triangle(point, triangle) == True:
            return True

    return False

1
2
3
4
5
6
7
8
9
10
11
# Test All Point
draw_list = []
for point in point_set:
    test_result = test_point_in_triangles(point, triangles)
    draw_list.append(test_result)

draw_points = [point for point, is_draw in zip(point_set, draw_list) if True == is_draw]

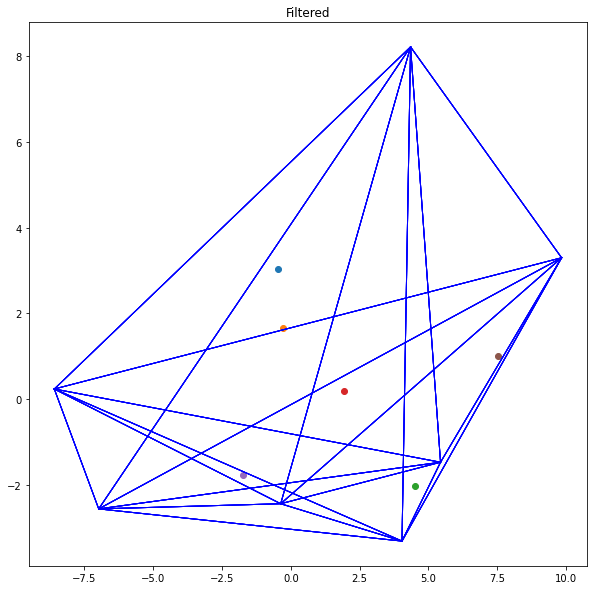

draw_triangles_and_points(draw_points, triangles, "Filtered")

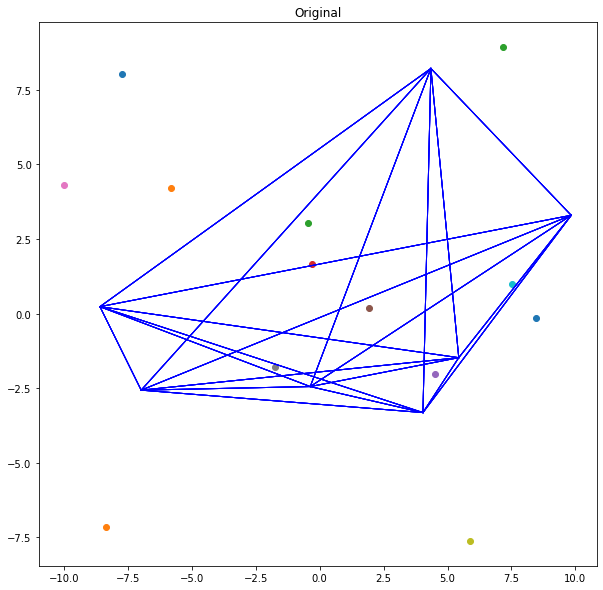

draw_triangles_and_points(point_set, triangles, "Original")

png

png
